Weatherproof Louvre
| PRODUCT CODE | NOMINAL NECK (MM) | EXACT NECK (MM) | FACE SIZE X_AND_Y (MM) | PIECES/ CARTON |
|---|---|---|---|---|
| WPL95 | 230 x 115 | 225 x 110 | 280 x 165 | 20 |
| WPL66 | 150 x 150 | 145 x 145 | 200 x 200 | 10 |
| WPL97 | 230 x 165 | 225 x 157 | 280 x 215 | 20 |
| WPL88 | 200 x 200 | 195 x 195 | 250 x 250 | 10 |
| WPL168 | 400 x 200 | 395 x 195 | 450 x 250 | 10 |
| WPL1010 | 250 x 250 | 245 x 245 | 300 x 300 | 10 |
| WPL1212 | 300 x 300 | 295 x 295 | 350 x 350 | 10 |
| WPL2412 | 600 x 300 | 595 x 295 | 650 x 350 | 10 |
| WPL1414 | 350 x 350 | 345 x 345 | 400 x 400 | 10 |
| WPL1616 | 400 x 400 | 395 x 395 | 450 x 450 | 10 |
| WPL2416 | 600 x 400 | 595 x 395 | 650 x 450 | 5 |
| WPL1818 | 450 x 450 | 445 x 445 | 500 x 500 | 5 |
| WPL2020 | 500 x 500 | 495 x 495 | 550 x 550 | 5 |
| WPL2424 | 600 x 600 | 595 x 595 | 650 x 650 | 5 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description

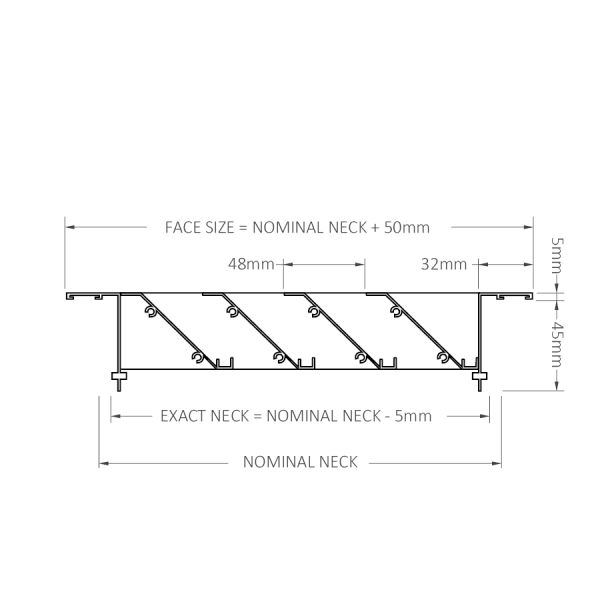

Suitable for both intake and return air applications. The Louvre blades offer a double weather stop design making it a unique and efficient solution in providing weather protection. Wide blade spacings enable improved airflow with reduced pressure drops and noise levels. The standard range offers a 32mm flange with a blade spacing of 48mm.
Specification
Weatherproof Louvres shall be QAE Model WPL from high quality extruded aluminium sections and are fitted with wire mesh to the back. Hairline mitres are mechanically held for maximum strength and durability. Louvres shall be natural anodised aluminium finish. Louvres shall be fitted with accessories where required by QAE.
