Swirl Diffuser Type ‘RFD’
WITH LOW SOUND POWER LEVEL FOR COMFORT AND INDUSTRIAL ZONES, WITH FIXED AIR CONTROL BLADES
Circular and square ceiling swirl diffusers
- Nominal sizes 125, 160, 200, 250, 315, 400
- Volume flow rate range 4 – 330 l/s or 14 – 1188 m³/h
- Diffuser face made of galvanised sheet steel, powder-coated, or of aluminium (depending on variant)
- For supply and extract air
- For variable and constant volume flows
- For all types of ceiling systems
- With discharge nozzle ideal for cooling in case of freely suspended installation
- High induction results in a rapid reduction of the temperature difference and airflow velocity
- Air change rates of up to 35 per hour can be achieved by arranging several diffusers in a row with a minimum pitch of 0.9 m (centre line to centre line)
- Ideal for comfort zones
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Optional equipment and accessories
- Exposed diffuser face available in RAL CLASSIC colours
- Horizontal or vertical duct connection
- Plenum box with cord-operated damper blade and pressure tap
- Shallow plenum box

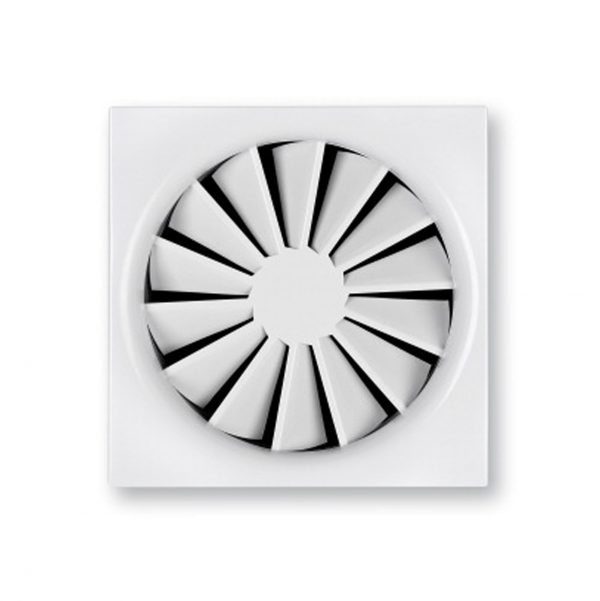

- RFD-Q: Square diffuser face

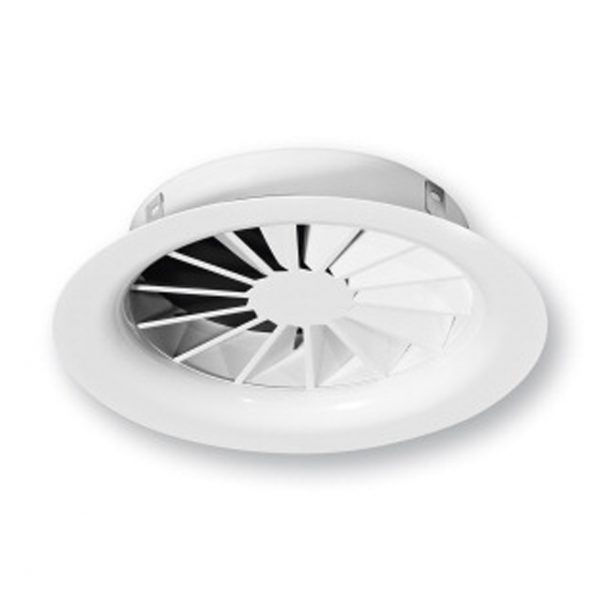

- RFD-R: Circular diffuser face
- RFD-*-D: Diffuser face with discharge nozzle
- K: Vertical duct connection, with duct collar
- US: Vertical duct connection, with transition piece
- A: Horizontal duct connection, with plenum box
- UO: Vertical duct connection, with transition piece and cross bar

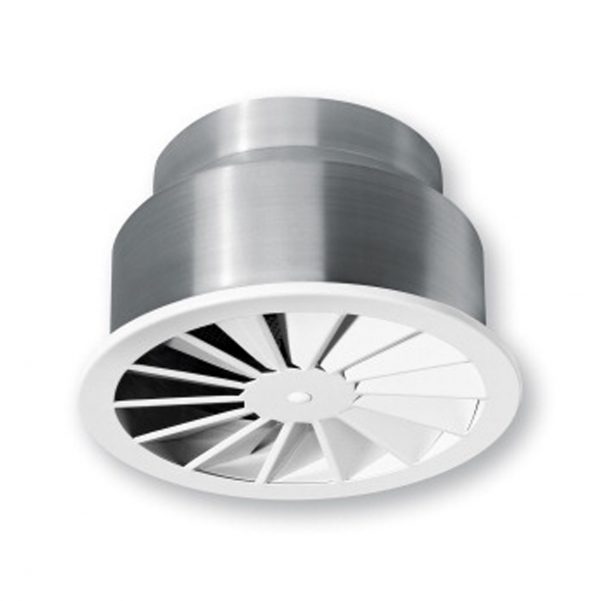

- UD: Vertical duct connection, with transition piece, cross bar and discharge nozzle
- N: Horizontal duct connection, with shallow plenum box to be installed above open cell ceilings
- Circular or square diffuser face
- Diffuser face with radially arranged fixed air control blades
- M: Damper blade for volume flow rate balancing
- MN: Pressure tap and cord-operated damper blade for volume flow rate balancing with the diffuser face in place
- Lip seal
- Spigot suitable for circular ducts to EN 1506 or EN 13180
- Spigot with groove for lip seal (if accessory lip seal has been ordered)
- Q: Diffuser face made of aluminium
- R: Diffuser face made of galvanised sheet steel
- Plenum box, duct collar and cross bar made of galvanised sheet steel
- Transition piece made of aluminium
- Lip seal made of rubber
- Diffuser face powder-coated RAL 9010, pure white
- P1: Powder-coated, RAL CLASSIC colour
