Removable Core Half Chevron 25mm Spacing ( WA ONLY )

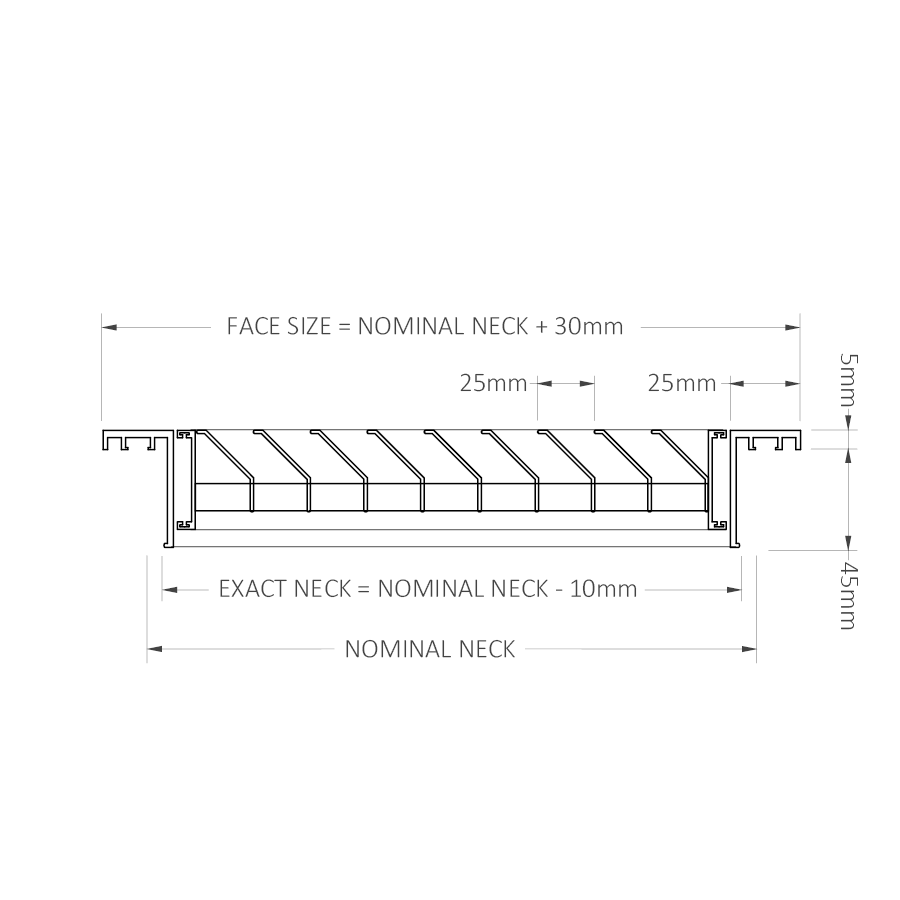

| PRODUCT CODE | NOMINAL NECK (mm) | EXACT NECK (mm) | FACE SIZE X_and_Y (mm) | PIECES/ CARTON |
|---|---|---|---|---|
| RCHC2566 | 150 x 150 | 140 x 140 | 180 x 180 | 10 |
| RCHC2588 | 200 x 200 | 190 x 190 | 230 x 230 | 10 |
| RCHC251010 | 250 x 250 | 240 x 240 | 280 x 280 | 10 |
| RCHC251212 | 300 x 300 | 290 x 290 | 330 x 330 | 10 |
| RCHC251414 | 350 x 350 | 340 x 340 | 380 x 380 | 10 |
| RCHC251616 | 400 x 400 | 390 x 390 | 430 x 430 | 10 |
| RCHC251818 | 450 x 450 | 440 x 440 | 480 x 480 | 10 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
For exhaust or return air, having a single set of fixed blades at 45 deg. at 25mm spacing. Available as removable core. Quick release removable core model provide easy access to rear and concealed fixing facility. Suitable for wall mounting.
Specification
Removable Core Half Chevron 25mm Spacing shall be QAE Model RCHC25 from high quality aluminium extrusion in a variety of standard sizes. Blades shall be secured at a standard pitch of 25mm and at 45 deg. Grilles shall be a powder coat finish. Grilles shall be fitted with accessories where required by QAE.
