Round Aluminium Eggcrate Grilles

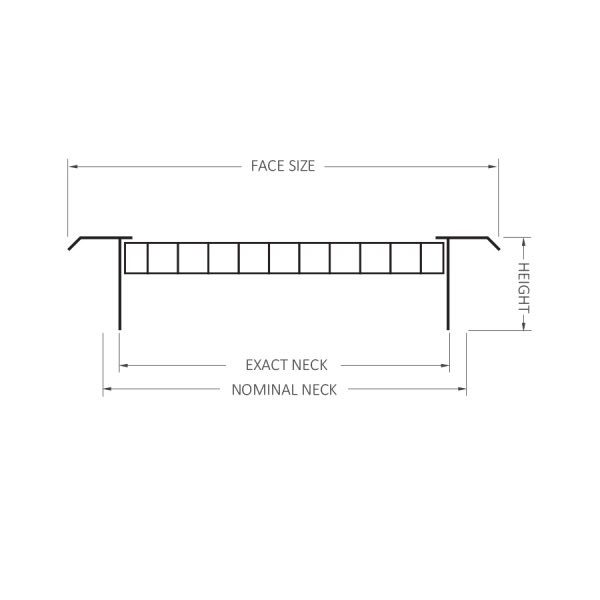

| PRODUCT CODE | EXACT NECK (mm) | NOMINAL NECK (mm) | FACE SIZE (mm) | HEIGHT (mm) | PIECES/ CARTON |
|---|---|---|---|---|---|
| EGR6 | 140 Dia | 150 Dia | 200 Dia | 40 | 20 |
| EGR8 | 190 Dia | 200 Dia | 250 Dia | 40 | 20 |
| EGR10 | 240 Dia | 250 Dia | 305 Dia | 45 | 20 |
| EGR12 | 290 Dia | 300 Dia | 355 Dia | 45 | 20 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
Suitable for return air, exhaust air and natural ventilation applications. The eggcrate core has approximately 90% free area, providing maximum air flow with relatively low noise levels.
Specification
Round Aluminium Eggcrate Grilles shall be QAE Model EGR. The frame is constructed from aluminium, while the aluminium cubed lattice core is 12.7mm x 12.7mm and is welded to the outer frame. Grilles shall be a powder coat finish. Grilles shall be fitted with accessories where required by QAE.
