Round Aluminium Ceiling Diffusers c/w Collar & Butterfly Damper

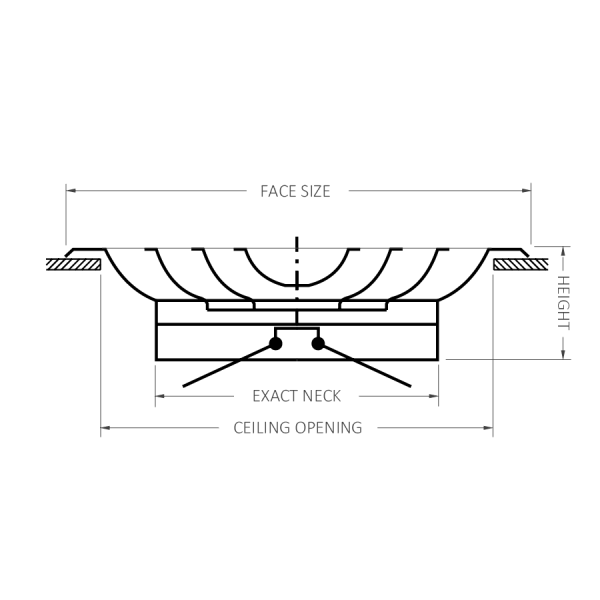

| PRODUCT CODE | EXACT NECK (mm) | CEILING OPENING (mm) | FACE SIZE (mm) | HEIGHT (mm) | PIECES/ CARTON |
|---|---|---|---|---|---|
| RCD6 | 150 Dia | 250 Dia | 300 Dia | 120 | 5 |
| RCD8 | 200 Dia | 300 Dia | 350 Dia | 120 | 5 |
| RCD10 | 250 Dia | 350 Dia | 400 Dia | 120 | 5 |
| RCD12 | 300 Dia | 400 Dia | 450 Dia | 120 | 5 |
| RCD14 | 350 Dia | 450 Dia | 490 Dia | 120 | 5 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
Suitable for supply applications for cooling, heating and isothermal conditions. Suitable for modular ceiling systems. Capable of handling high airflow rates at moderately low pressure drops and noise.
Specification
Round Aluminium Ceiling Diffusers shall be QAE Model RCD manufactured from spun aluminium with quick release core as per QAE literature, providing long term strength and rigidity. The airflow passages are smooth ensuring quiet and efficient airflow. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by QAE.
