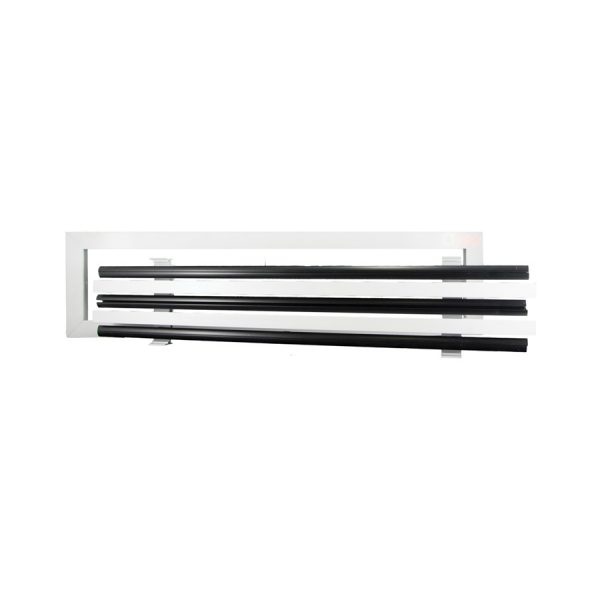

Loose Core Linear Slot Diffuser
General InformationÂ
- Product Code: LCLSD
- Powder coated white as standard
- Natural Anodised or special colours available upon request
- Made to order
- Australian Made
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
The QPRO Loose Core Linear Slot Diffuser is Australian made, suitable for supply or return air, with fully adjustable slots and unique air pattern control design. The air pattern can be adjusted in situ or factory. Set to suit design requirements. Suitable for ceiling mounting applications. The loose core linear slot diffuser’s unique design allows the installer to simply push the complete core of the diffuser upwards to allow it to be screw fixed to box above then simply drop back down into the frame.
Specification
Loose Core Linear Slot Diffuser from high quality aluminium extrusion in maximum lengths of 3000mm and from 1 to 4 slots. Mitred ends are standard and are powder coated white c/w black anodised blades as standard. Available in both 20mm and 25mm slots. Diffusers shall be a powder coat finish c/w black anodised blades as standard. Diffusers shall be fitted with accessories where required by QAE.
