Jet Diffuser Flanged

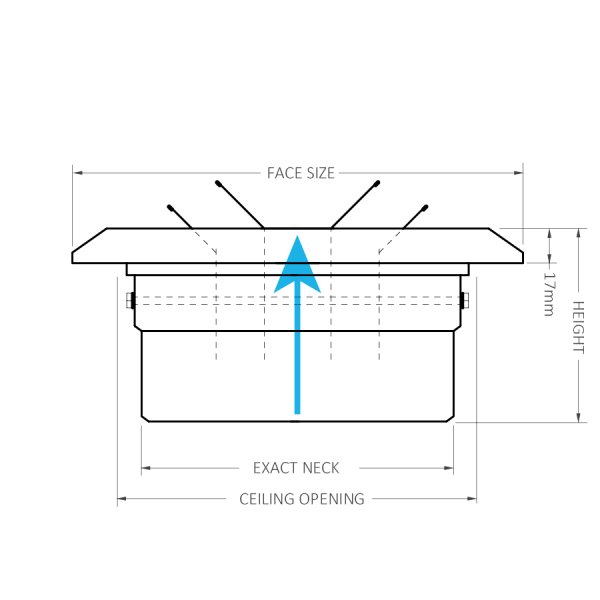

| PRODUCT CODE | EXACT NECK (mm) | CEILING OPENING (mm) | FACE SIZE (mm) | HEIGHT (mm) | PIECES/ CARTON |
|---|---|---|---|---|---|
| JDF8 | 200 Dia | 230 Dia | 280 Dia | 132 | 8 |
| JDF10 | 250 Dia | 280 Dia | 330 Dia | 132 | 6 |
| JDF12 | 300 Dia | 330 Dia | 380 Dia | 132 | 4 |
| JDF14 | 350 Dia | 380 Dia | 430 Dia | 132 | 2 |
| JDF16 | 400 Dia | 430 Dia | 480 Dia | 132 | 2 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
For supply air, delivering a powerful stream of air over long distances. The jet diffuser core can be rotated 180° to discharge air in either a diffused or jet pattern. The throws with the Jet setting are typically double that of the Diffused setting. The versatility of this design makes the diffuser a popular choice for large areas requiring varied comfort levels. The diffuser is also ideal for spot cooling of areas with high heat loads.
Specification
Jet Diffuser Flanged shall be QAE Model JDF manufactured from spun aluminium sheeting ensuring functional strength and performance that also gives an attractive and aesthetically pleasing appearance. Incorporating the centre barrel fixed my means of a pivoting rod to the outer flanged housing. For ease of installation the outer face ring twists on the main face to hide all fixings. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by QAE.
