Half Chevron

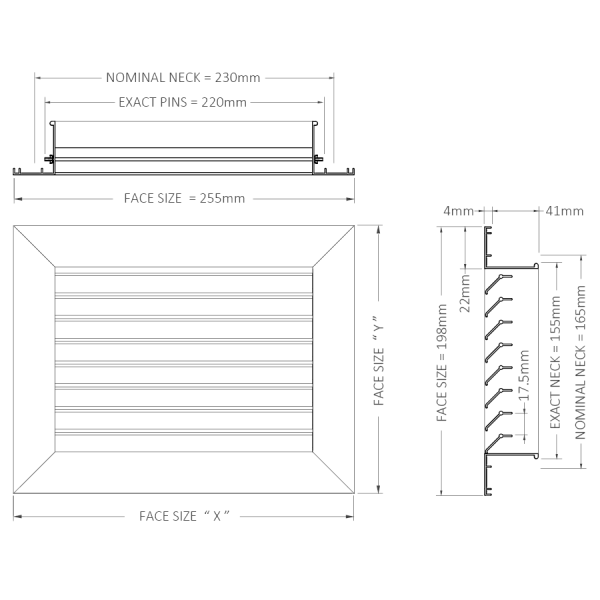

| PRODUCT CODE | NOMINAL NECK (mm) | EXACT_PINS x EXACT_NECK (mm) | FACE SIZE X_and_Y (mm) | PIECES/ CARTON |
|---|---|---|---|---|
| HC97 | 230 x 165 | 220 x 155 | 255 x 198 | 10 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
Suitable for return air, exhaust air and natural ventilation applications. Suitable for wall mounting.
Specification
Half Chevron Grilles shall be QAE Model HC from high quality aluminium extrusion, having a single set of fixed blades at 45 deg. and shall be secured at a standard pitch of 17.5mm. Grilles shall be natural anodised aluminium finish. Grilles shall be fitted with accessories where required by QAE.
