Exhaust Metal Valves

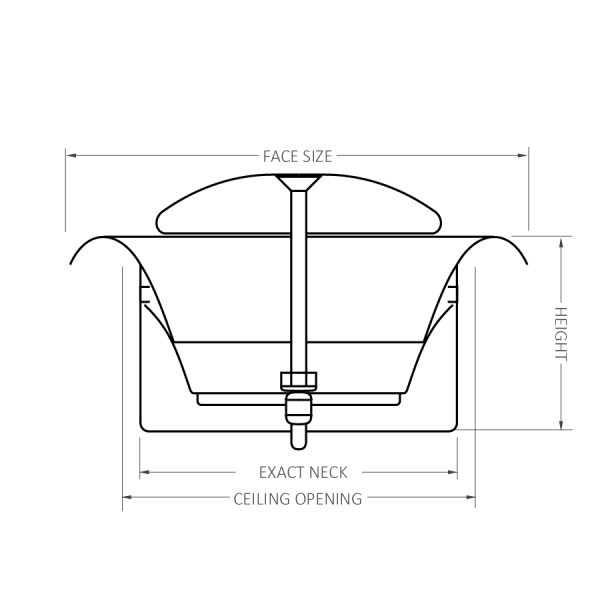

| PRODUCT CODE | EXACT NECK (mm) | CEILING OPENING (mm) | FACE SIZE (mm) | HEIGHT (mm) | PIECES/ CARTON |
|---|---|---|---|---|---|
| MVE4 | 98 Dia | 103 Dia | 138 Dia | 55 | 20 |
| MVE5 | 123 Dia | 128 Dia | 170 Dia | 55 | 20 |
| MVE6 | 148 Dia | 153 Dia | 210 Dia | 55 | 20 |
| MVE8 | 198 Dia | 203 Dia | 250 Dia | 55 | 20 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
Suitable for exhaust air applications for isothermal conditions. Capable of handling variable airflow rates at moderately low pressure drops and noise.
Specification
Exhaust Metal Valves shall be QAE Model MVE constructed from steel with mounting ring, providing long term strength and rigidity. The airflow passages are smooth ensuring quiet and efficient airflow. The centre cone can be wound up or down to adjust the airflow required to specific conditions and applications. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by QAE.
