Auditorium Floor Swirl – Directional

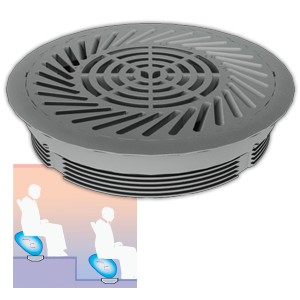

The SMARTEMP Auditorium Floor Swirl Diffuser, type ASF-AD, is a high induction, low air velocity, directional floor swirl diffuser for draught-free air supply with rapid air temperature equalisation from beneath auditorium or lecture theatre seating.
Occupant thermal comfort and indoor air quality are enhanced by the provision of displacement airflow to the low level occupancy microclimate. Heat and contaminants, which rise from occupants as plumes of natural convection, accumulate in a high level stratified layer where they are removed from the space in concentrated form. Occupants are enveloped in a cocoon of high indoor air quality and enhanced thermal comfort.
Find out more

Customise & Add To
Your Quote Request List

You must be logged in to view product options

Product Information

Under-seat floor swirl diffuser with rearward inclined air pattern, for location in halls, auditoria and lecture theatres.

Airflow is directed rearwards, away from the sensitive leg region of seated occupants.

Quiet, adjustable damper with settings for 40%, 60%, 80% and 100% airflow.

	Location – below: Air supply from beneath seats.
	Displacement airflow: 5 – 17 L/s (18 – 61 m³/h) Nominal diameter: DN200
	VAV dependent throw: horizontal coverage dependent upon VAV flow rate.
	Adjustable direction/pattern: inclined discharge rotatable to direct airflow rearwards, away from legs of seated occupants.
	Manual adjustment: rotation of air direction is manual.
	Circular face shape: 200 mm nominal diameter round floor swirl face, plus mounting flange.
	Radial face pattern: substantially radially aligned outer slots.
	Concentric face pattern: concentric inner slots.
	Plastic face: Polycarbonate, dyed grey or to colour of choice.
