Flush Mounted 4-Way Blow Diffusers

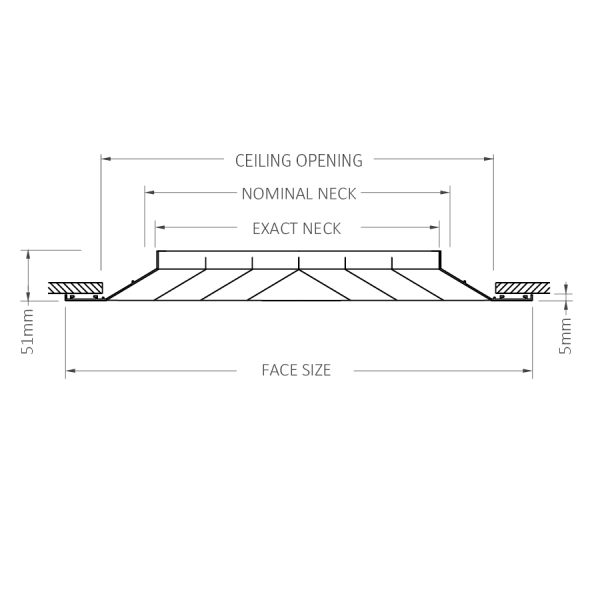

| PRODUCT CODE | NOMINAL NECK (mm) | EXACT NECK (mm) | CEILING OPENING (mm) | FACE SIZE X_and_Y (mm) | PIECES/ CARTON |
|---|---|---|---|---|---|
| SD466 | 150 x 150 | 145 x 145 | 220 x 220 | 295 x 295 | 10 |
| SD499 | 225 x 225 | 220 x 220 | 295 x 295 | 370 x 370 | 10 |
| SD41212 | 300 x 300 | 295 x 295 | 370 x 370 | 445 x 445 | 10 |
| SD41515 | 375 x 375 | 370 x 370 | 445 x 445 | 520 x 520 | 10 |
Customise & Add To
Your Quote Request List
You must be logged in to view product options
Product Information
Description
For supply air, suitable for heating and cooling. Available in a range of different core patterns and sizes giving total flexibility for most installations in modern ceiling tile applications. Flanged for surface mounting.
Specification
Flush Mounted Diffuser shall be QAE Model SD multi core pattern design of extruded aluminium construction with quick release core as per QAE literature. Hairline mitred joins mechanically held. Diffusers shall be a powder coat finish. Diffusers shall be fitted with accessories where required by QAE.
